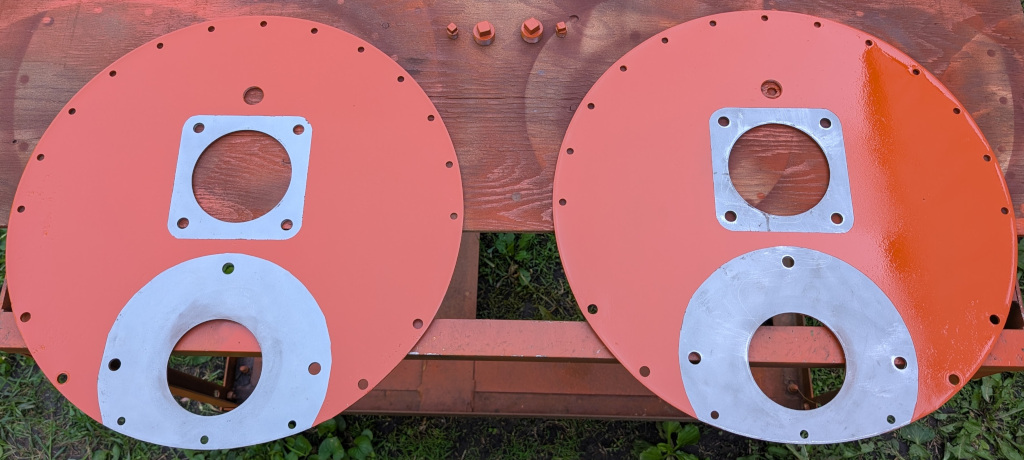

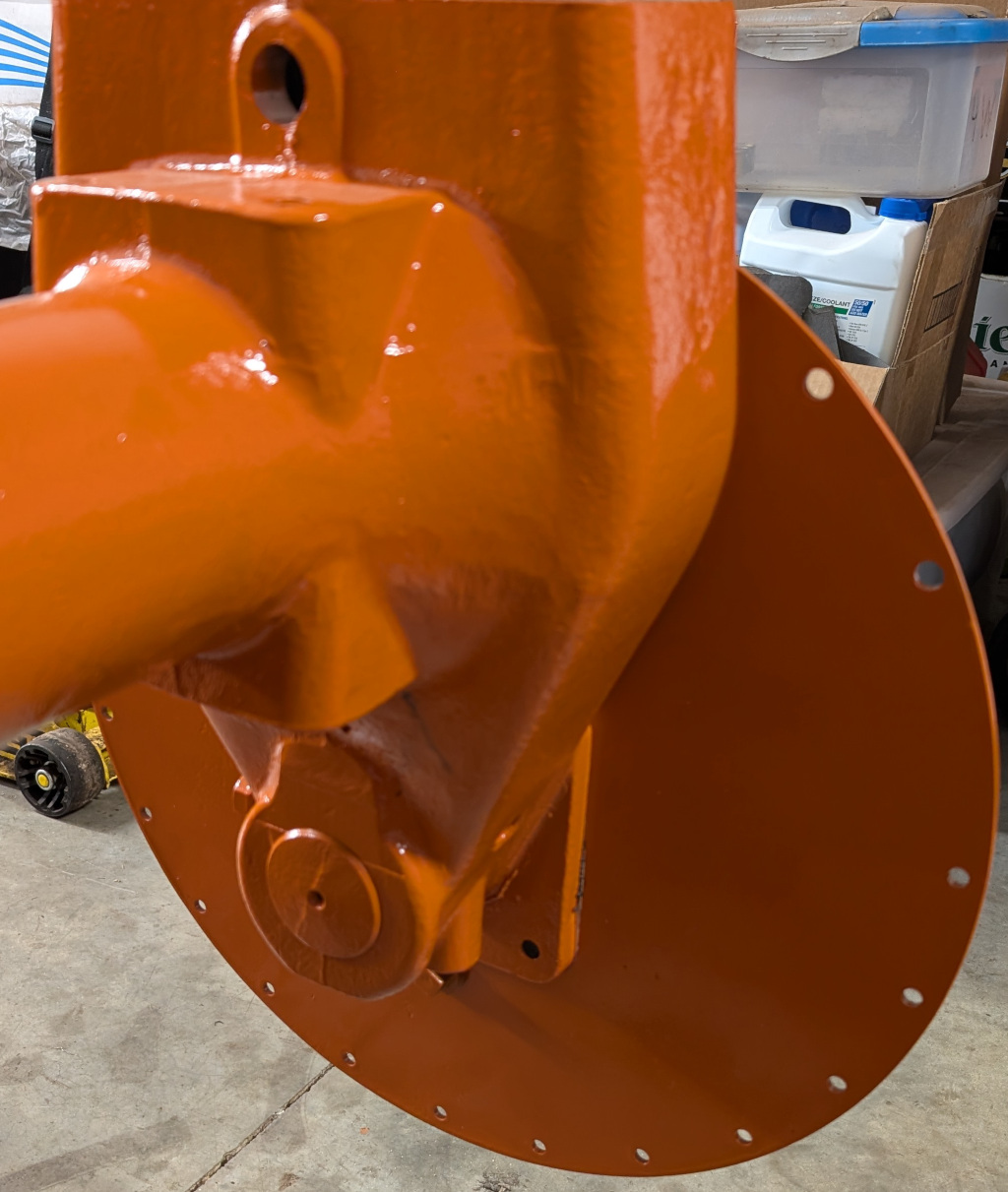

I masked off these areas and cut around the gaskets I made before paint

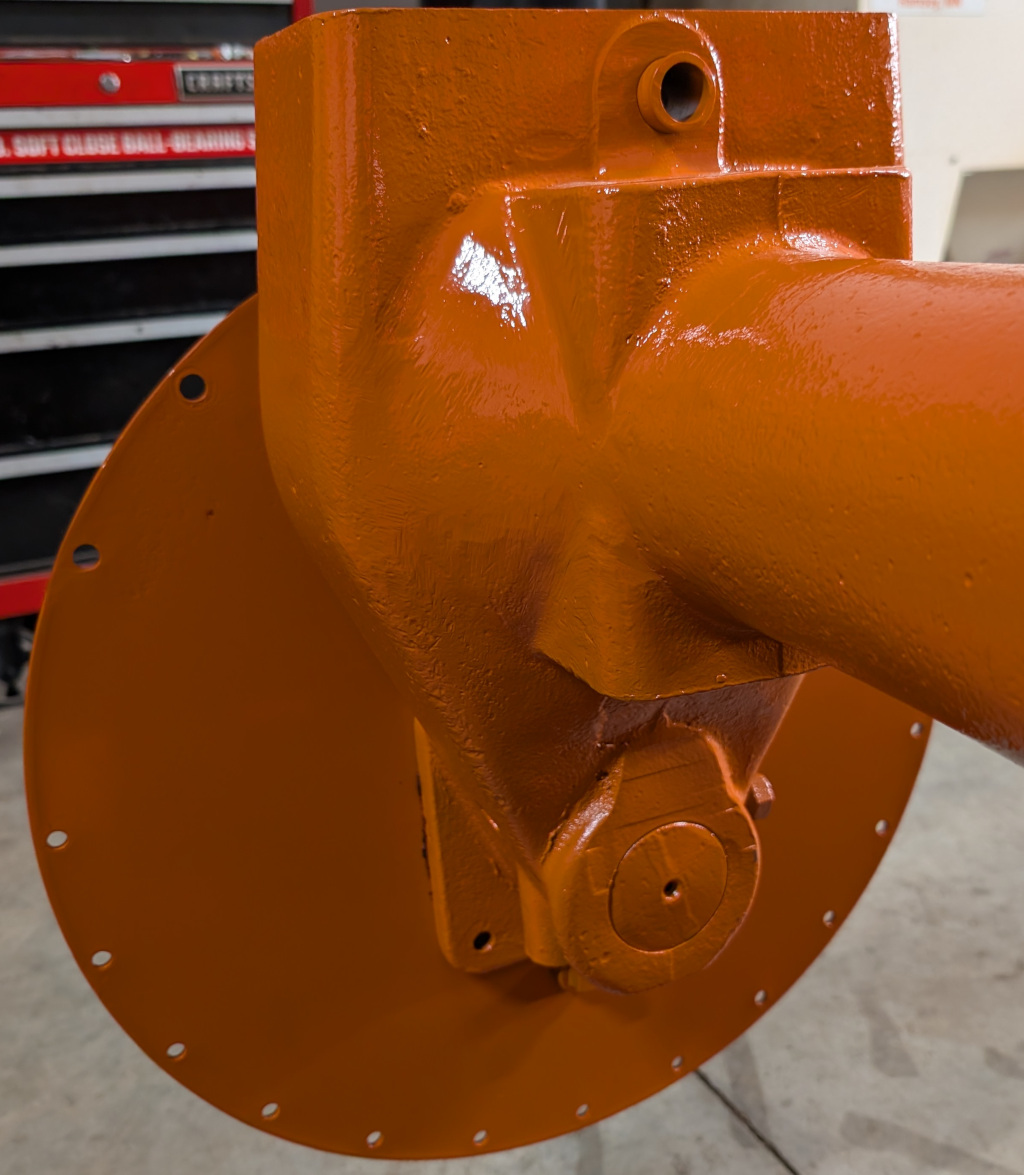

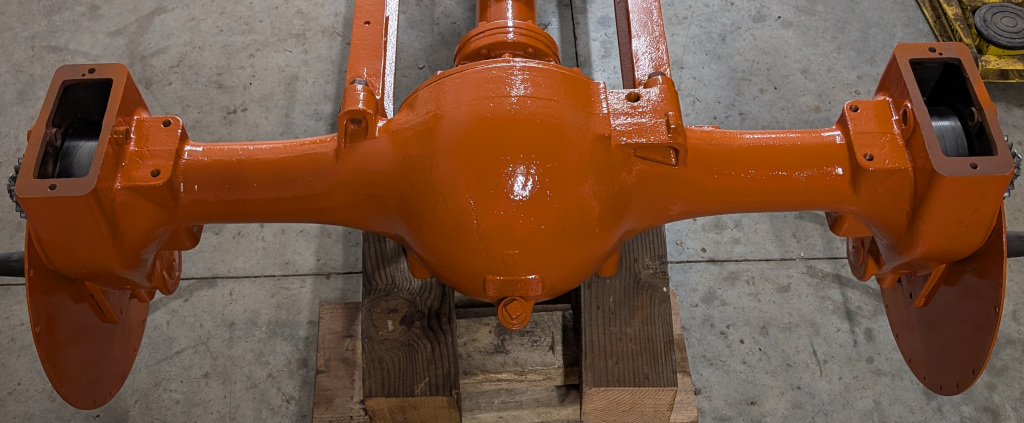

The drop boxes are starting to go back on
The 34 model didn't have the vent bolt but I don't want oil pushed out with temp changes

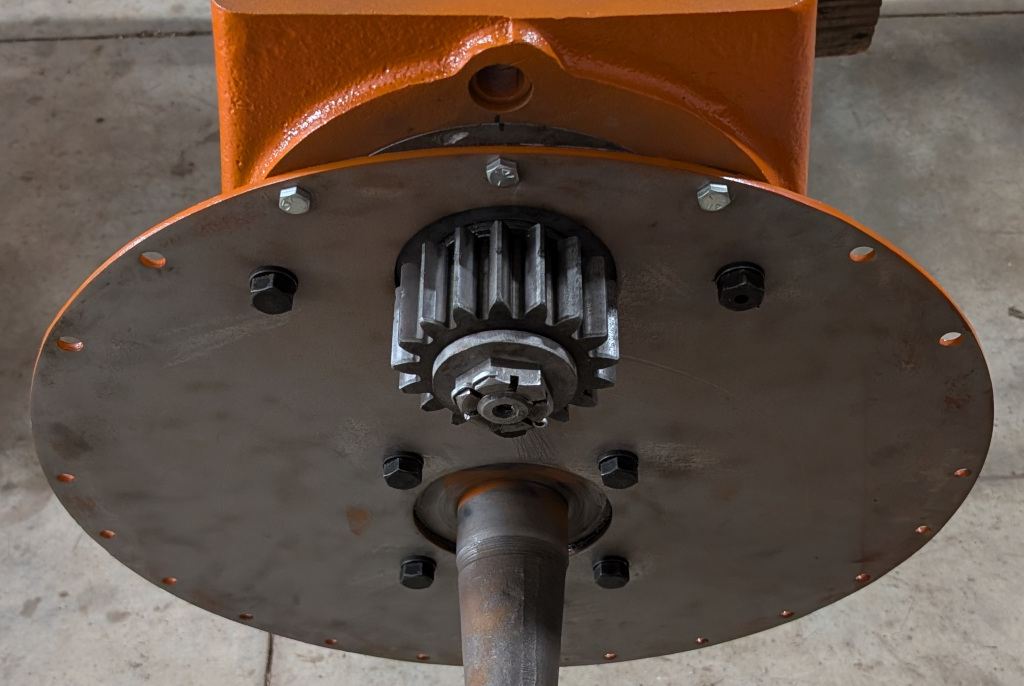

Masking and painting the inside first is the only way to get paint inbetween these parts

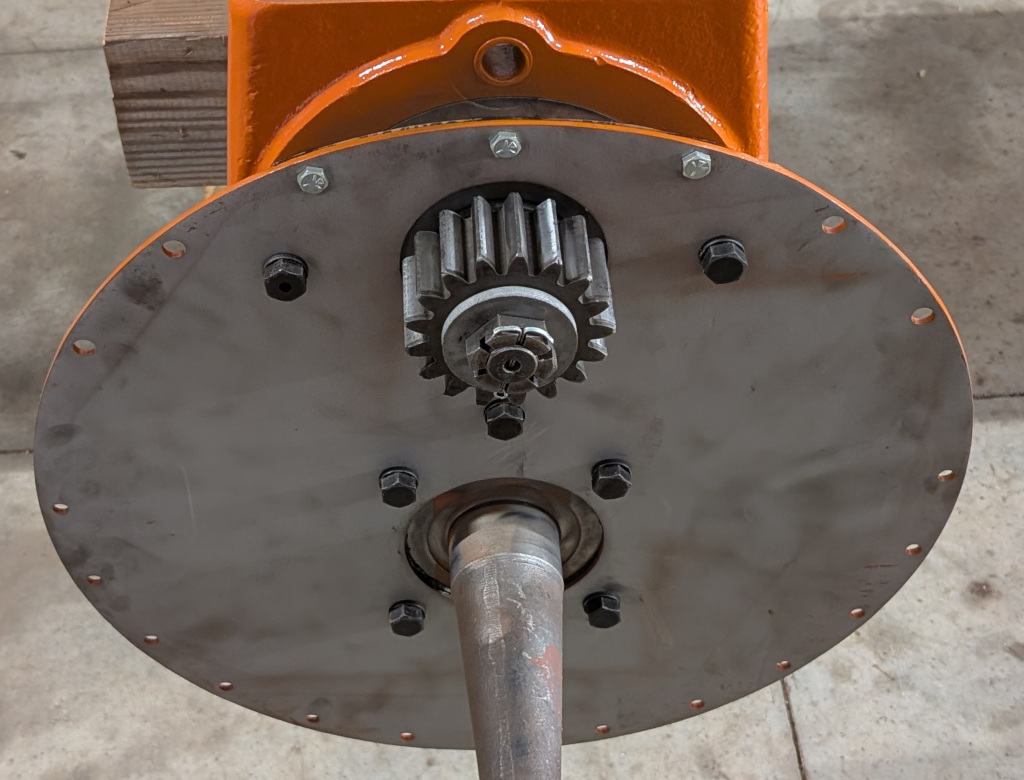

I made gaskets for these but didn't get a picture before they are hidden
A bit of reportable progress

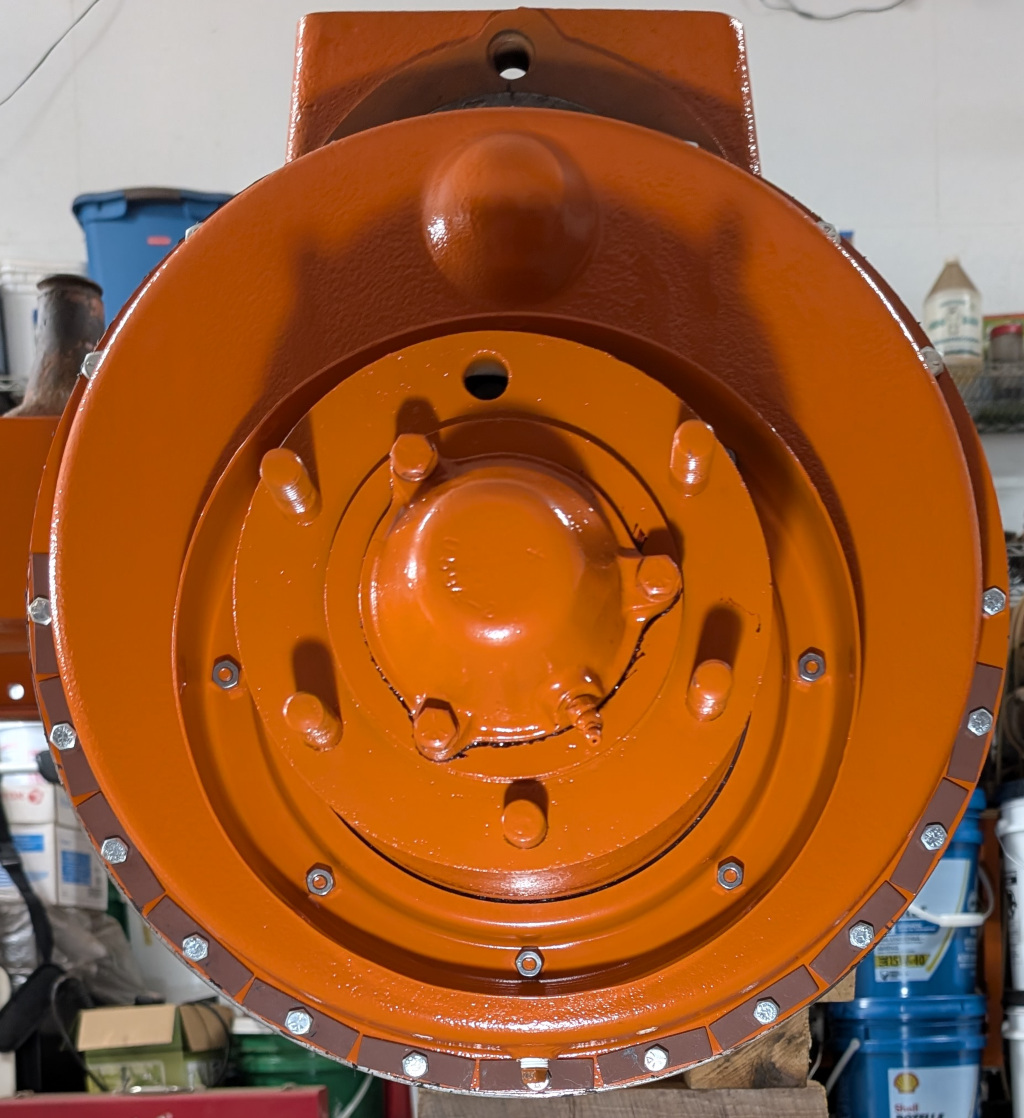

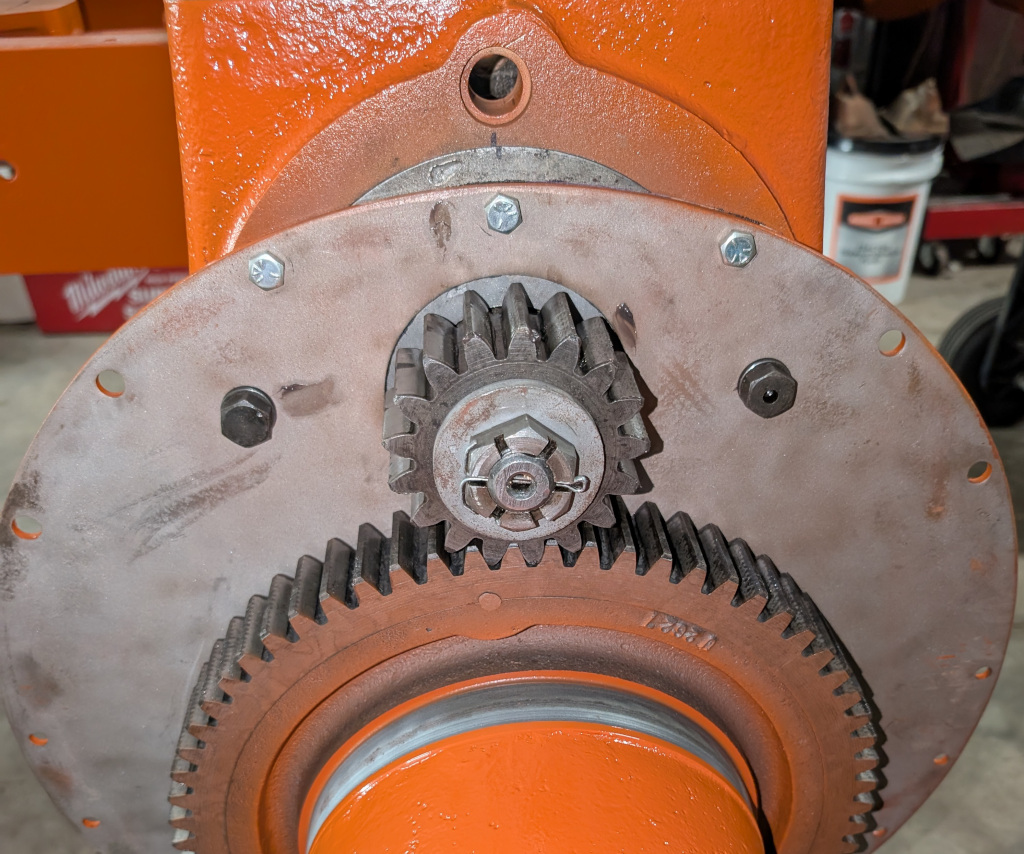

And the final drives are on

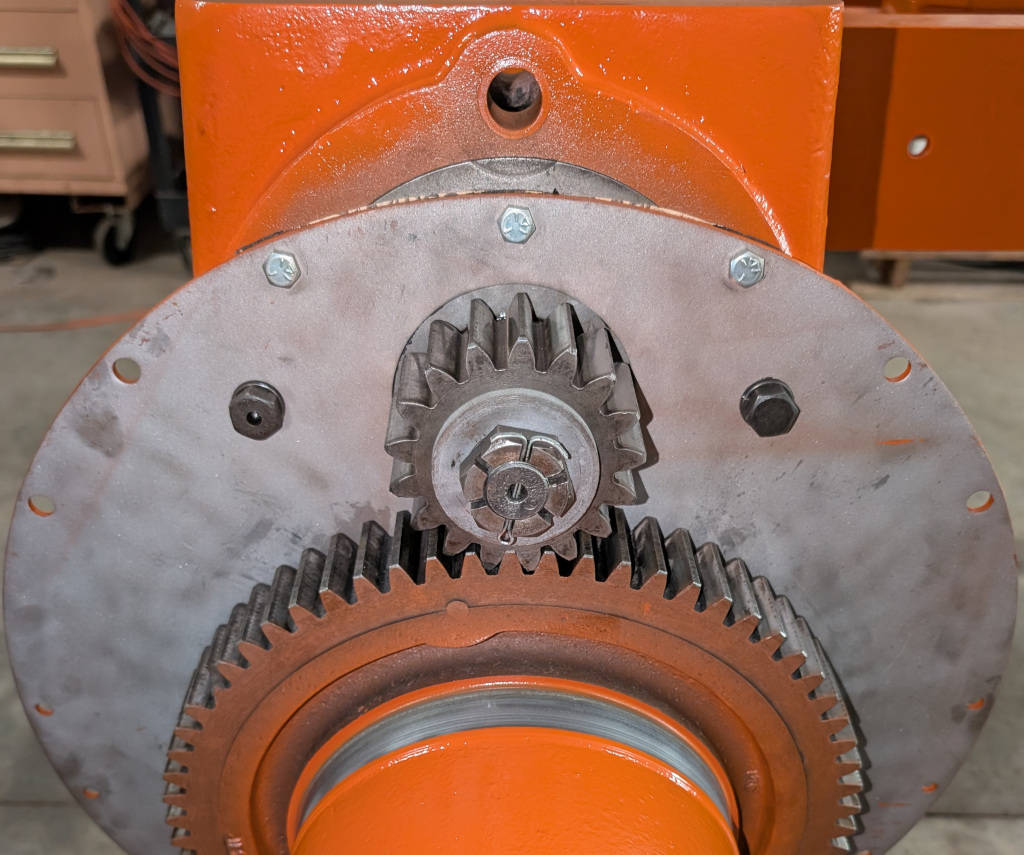

Now it's ready to have the covers back on
With the Gear Covers on we see where the Reinforcement pieces go

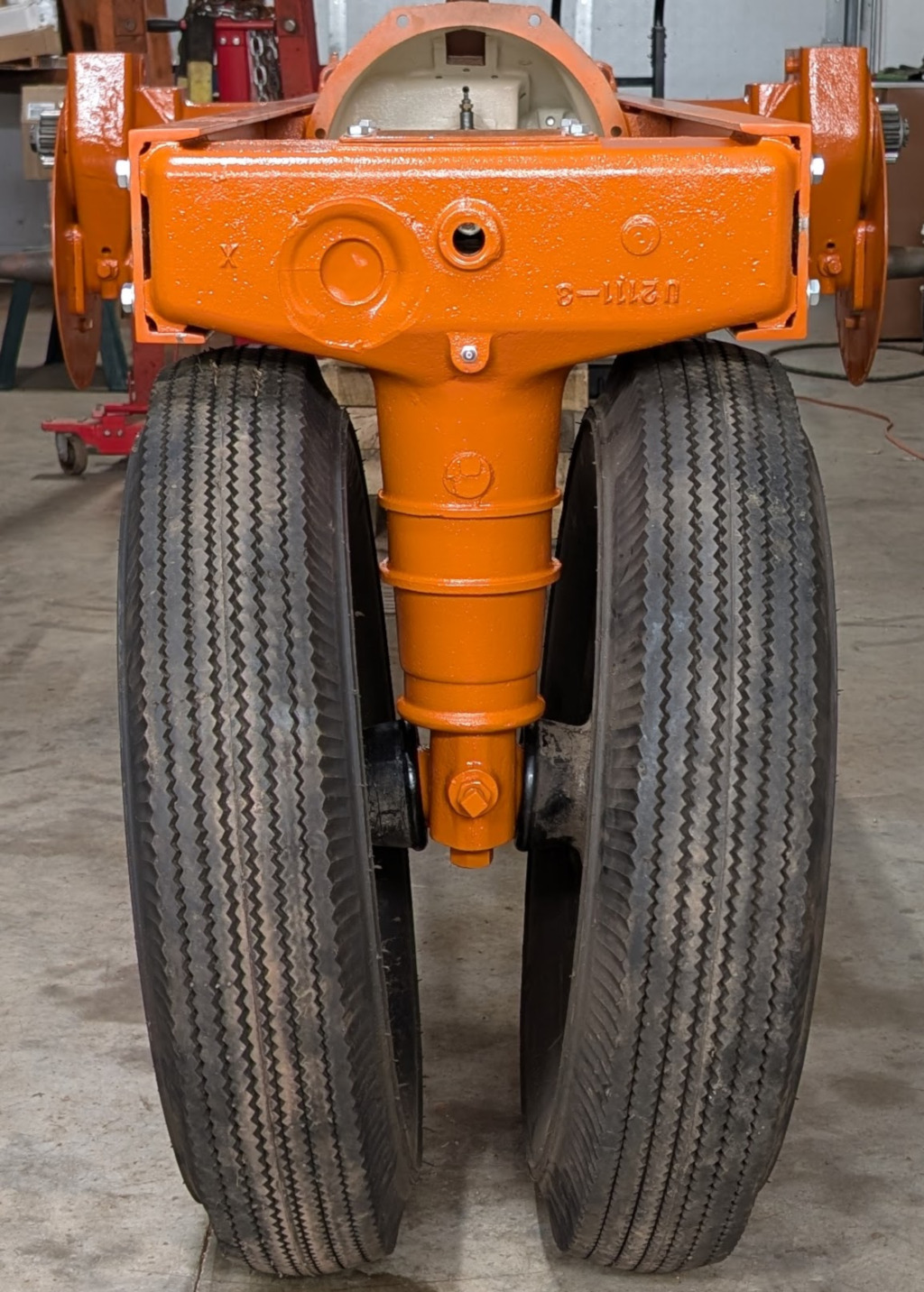

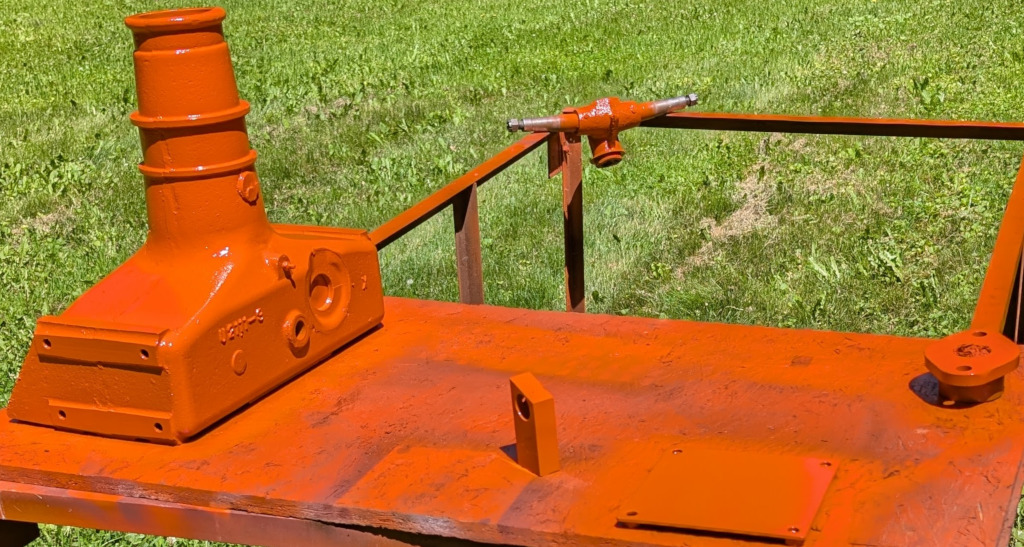

The front bolster and pieces get out to the booth

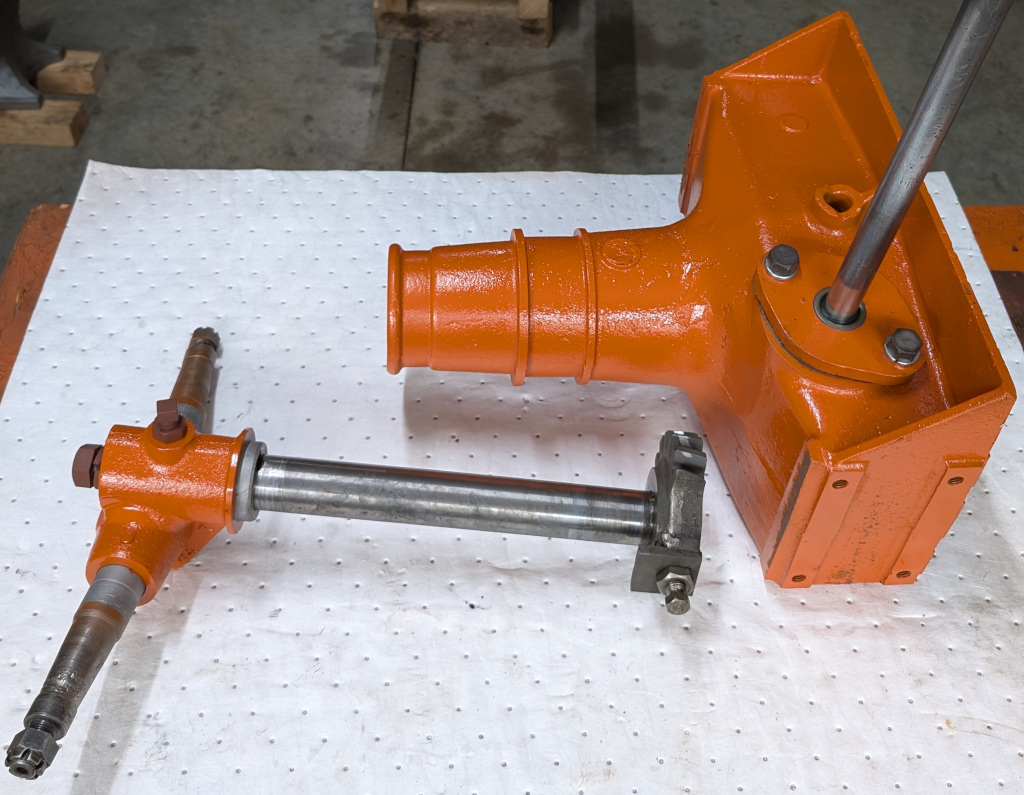

I'm still waiting on the bearing and seals to get it assembled and back in place
Upper Seal U-2101 70202101, Lower Seal U-2102 70202102, cone 355 and Race 354 it's ready

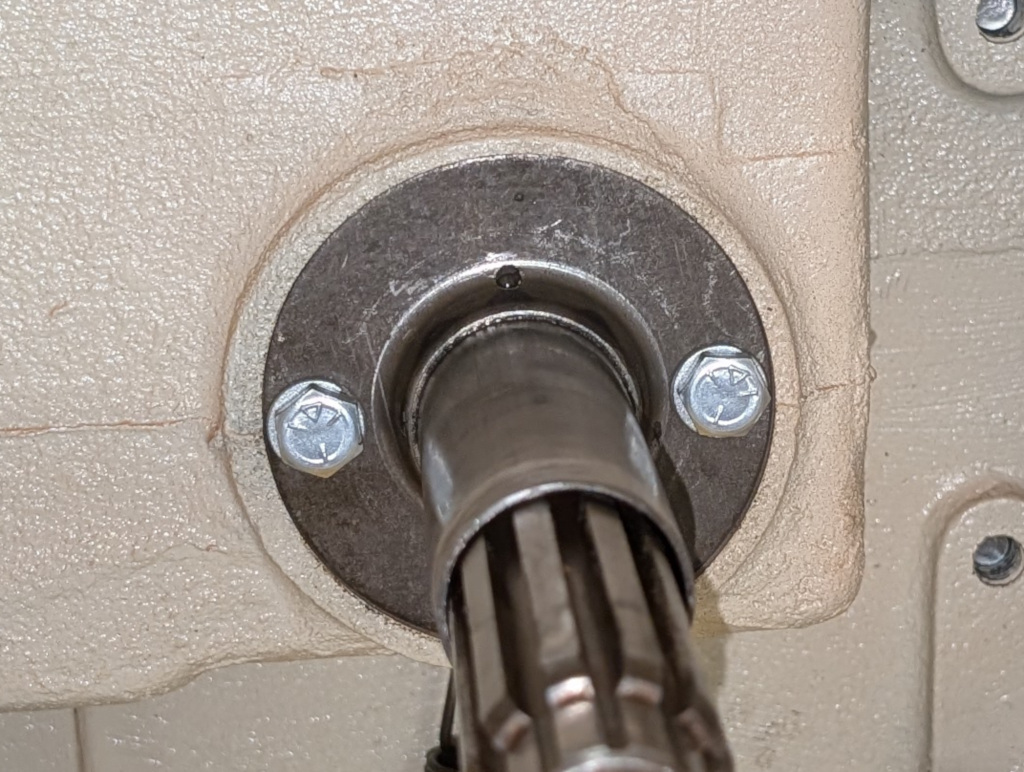

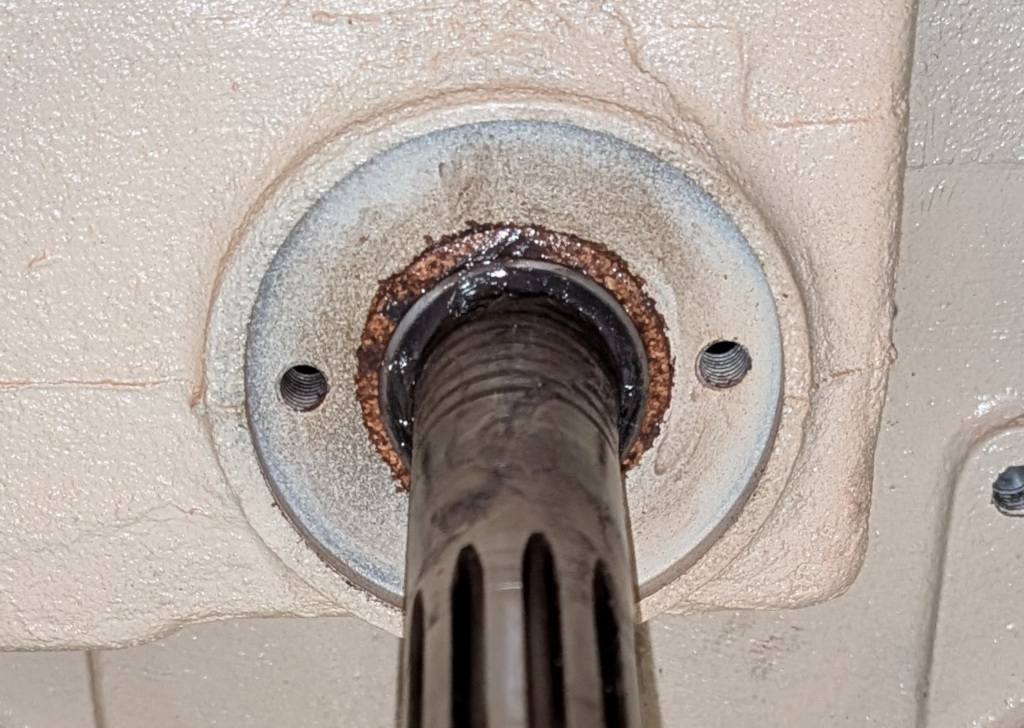

The original retaining washer and 2 new cork seals U-2086 now 70202086 from Agco
Hopefully those seals won't be seen again for a long time

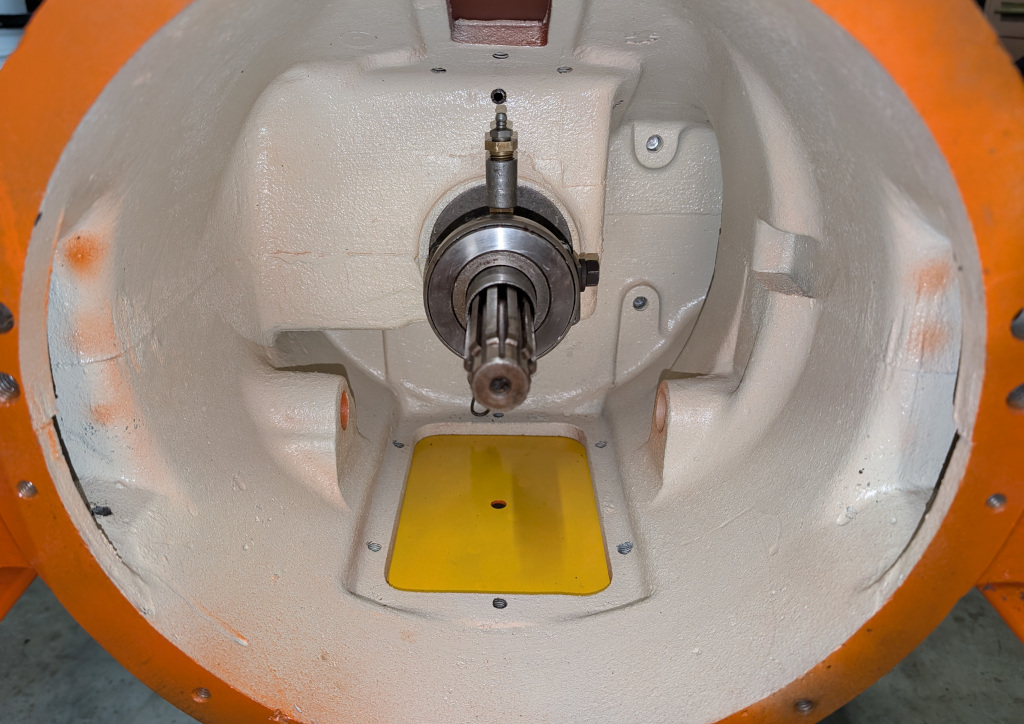

New thrust bearing and if I had the shaft, fork, and lever for the clutch ready they could go on

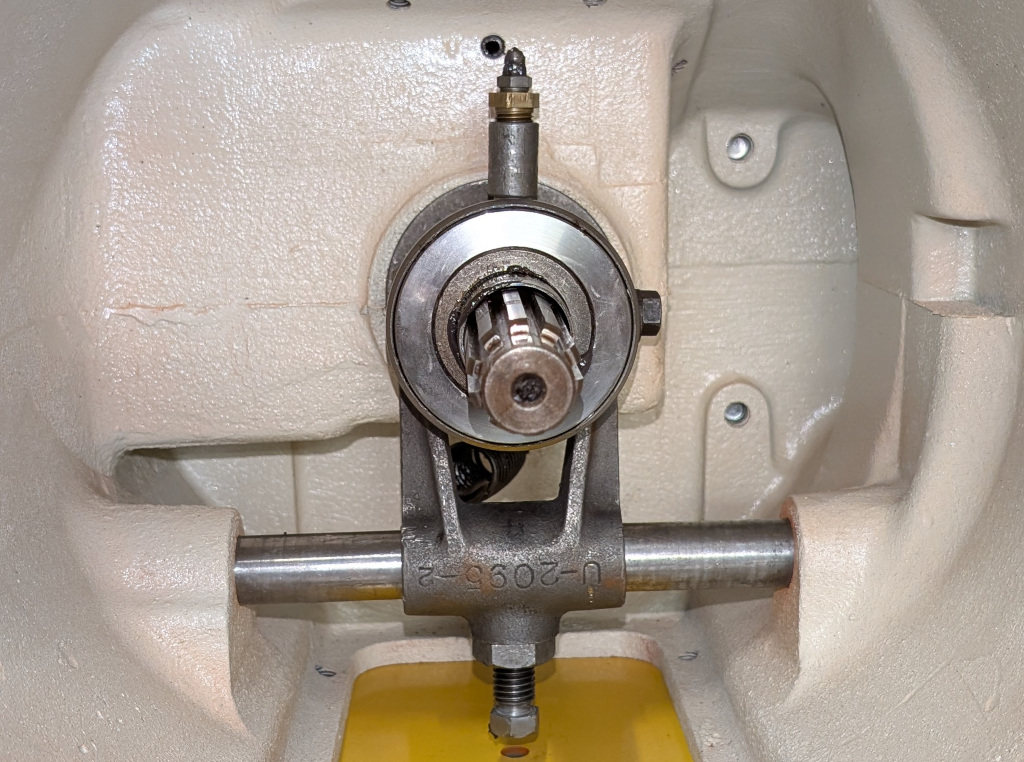

And what it looks like once those things are ready

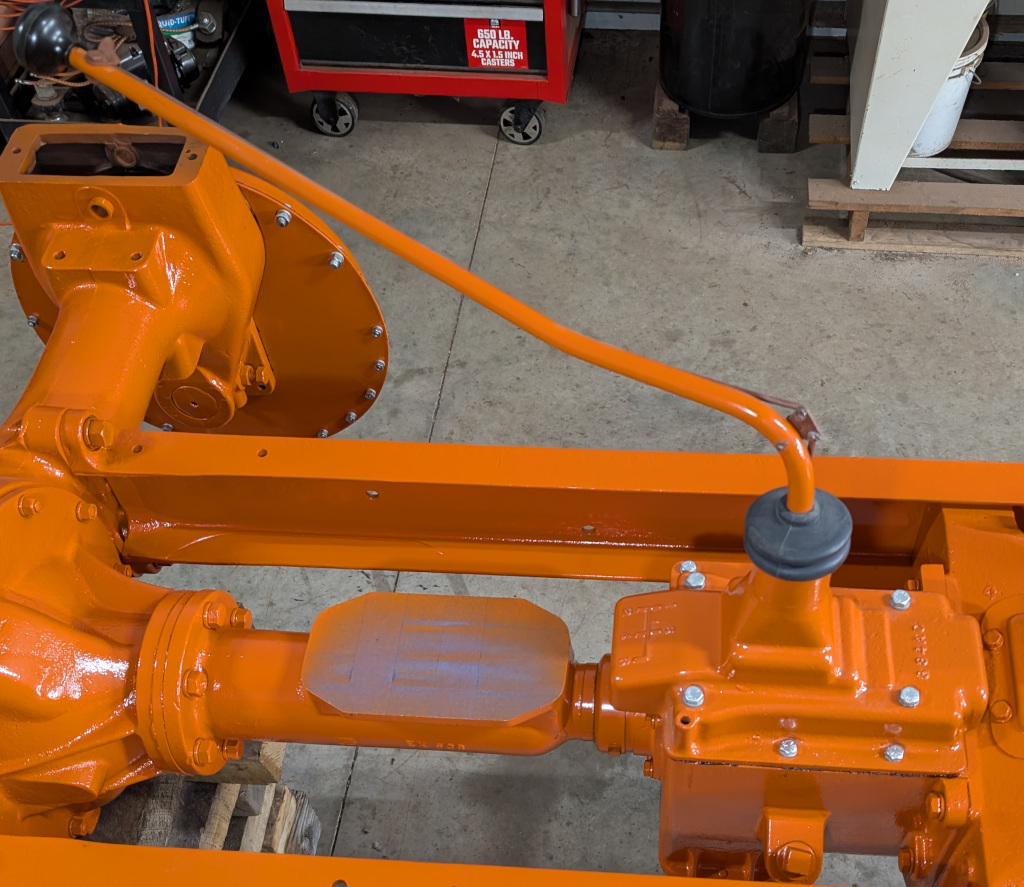

I had the 1934 only shift tower ready 12 years ago, now it's finally in place, just one bolt to find

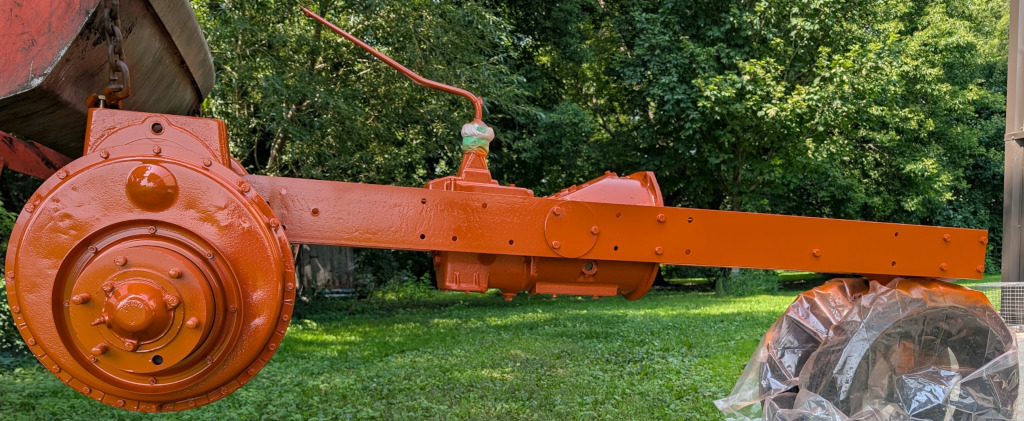

Suspended from the loader it's rolled out for a coat of paint

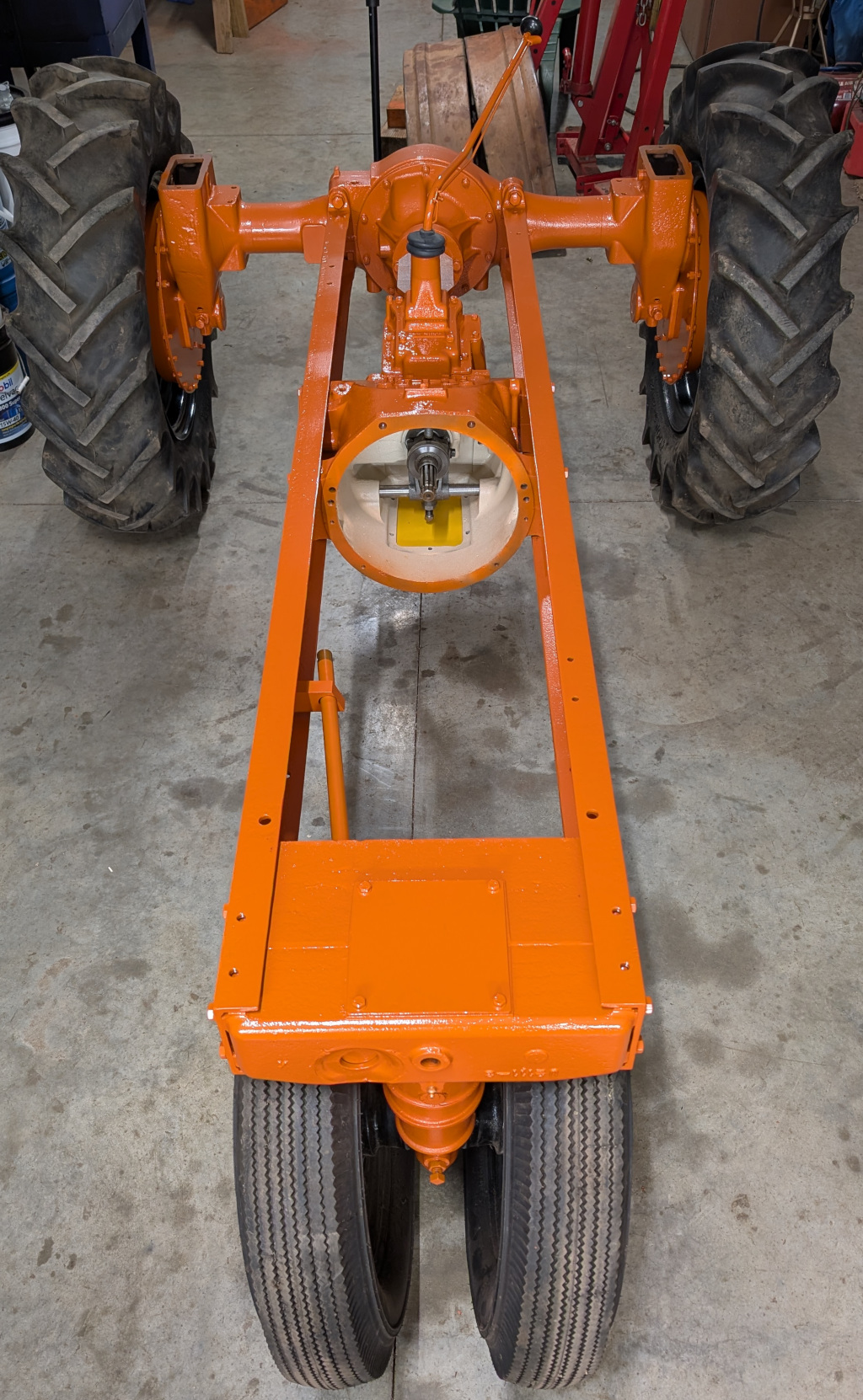

Once again a rolling chassis
