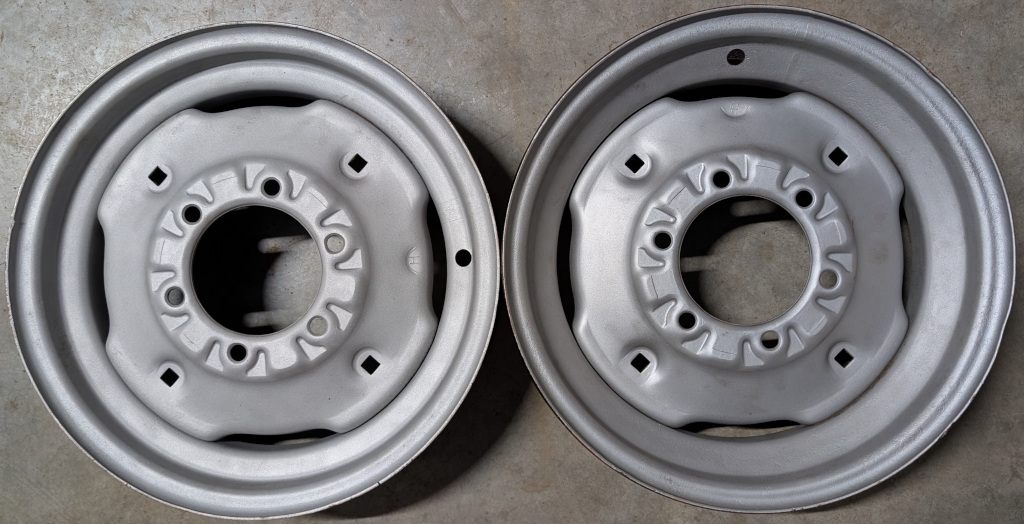

Bead blasted they look quite nice

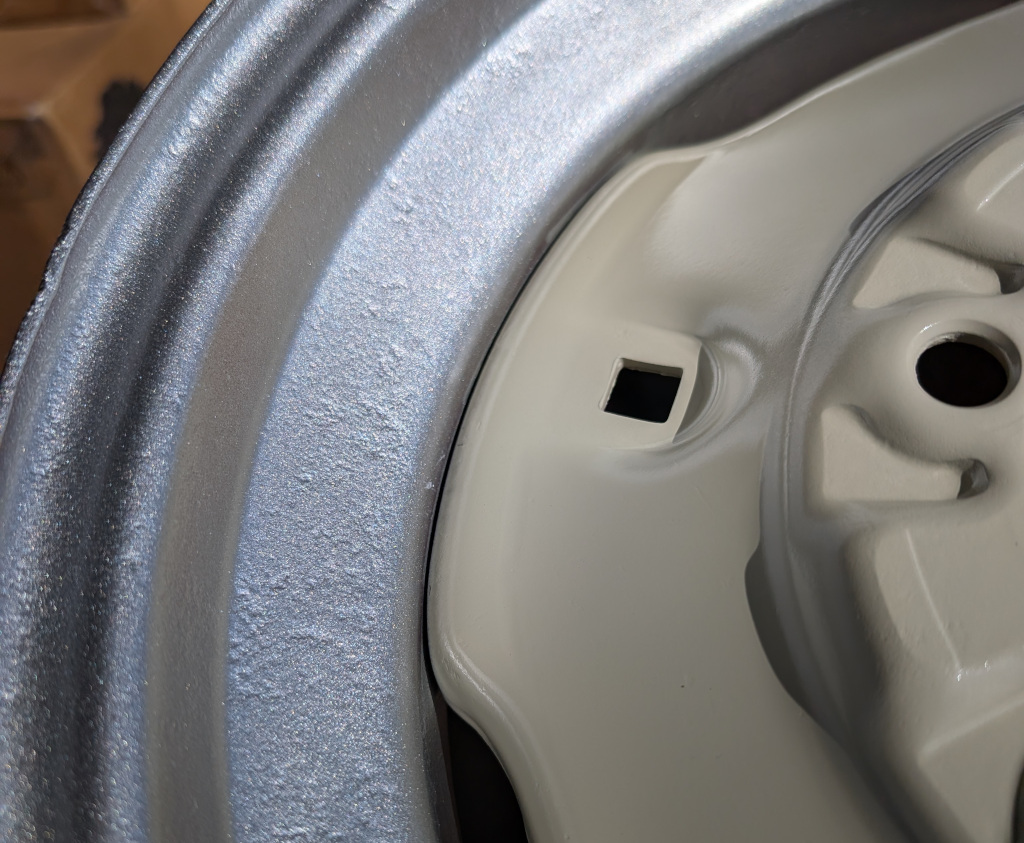

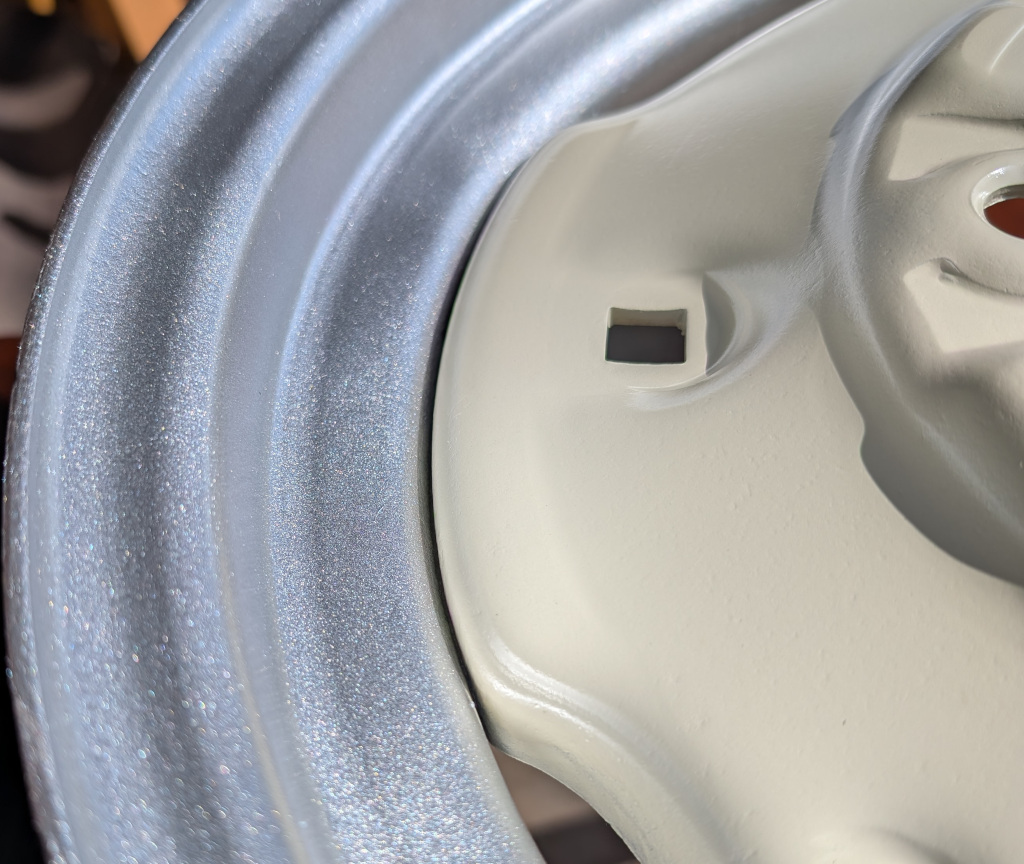

4.5 x 16" Rims. Blasted, primed, and painted the part that doesn't show is sealed and looks fine

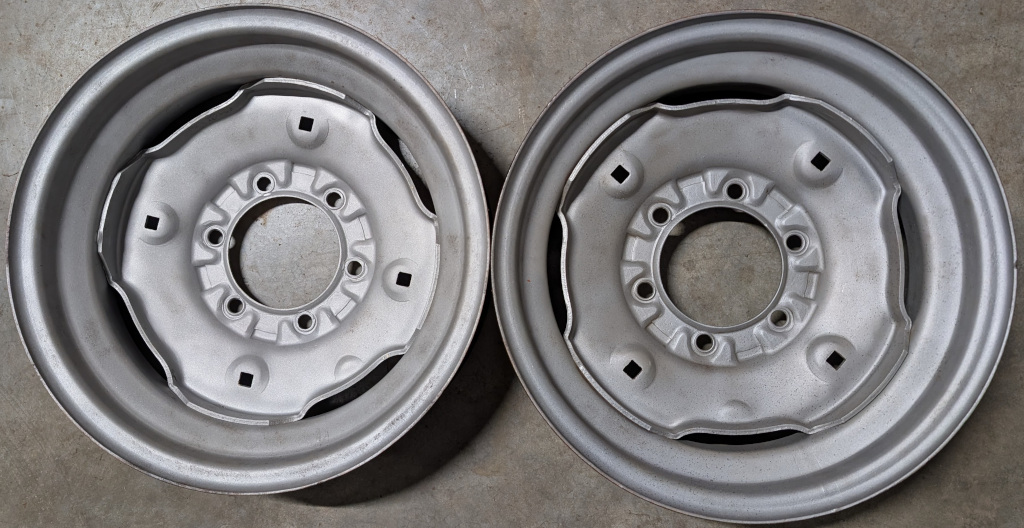

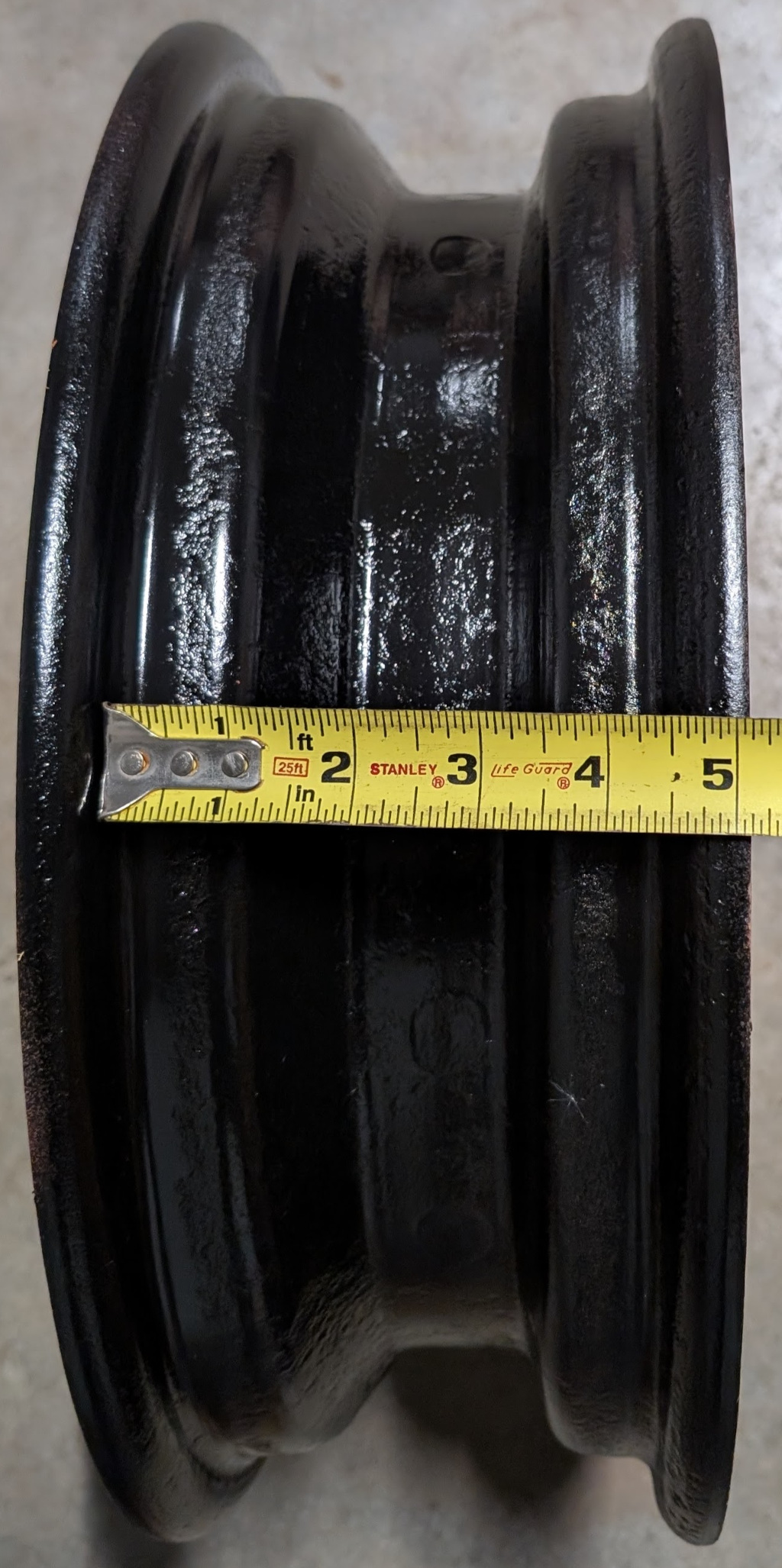

For some reason the back spacing is different on the front wheels
The upper rim has 4 inch back spacing the lower has 5 inch
With the proper 4 inch back spacing there is adequate space for a 6.50 x 16 tire

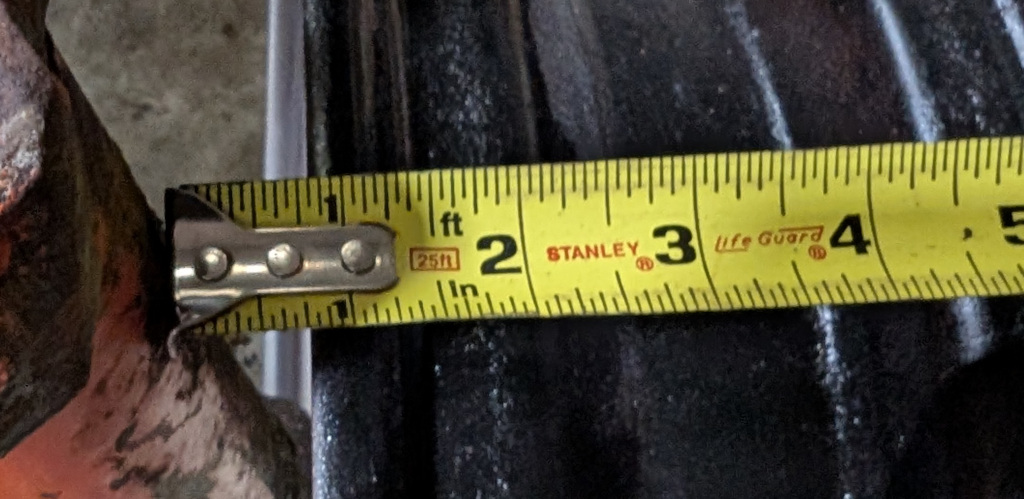

The wheel with 5 inch back spacing would leave almost no clearance

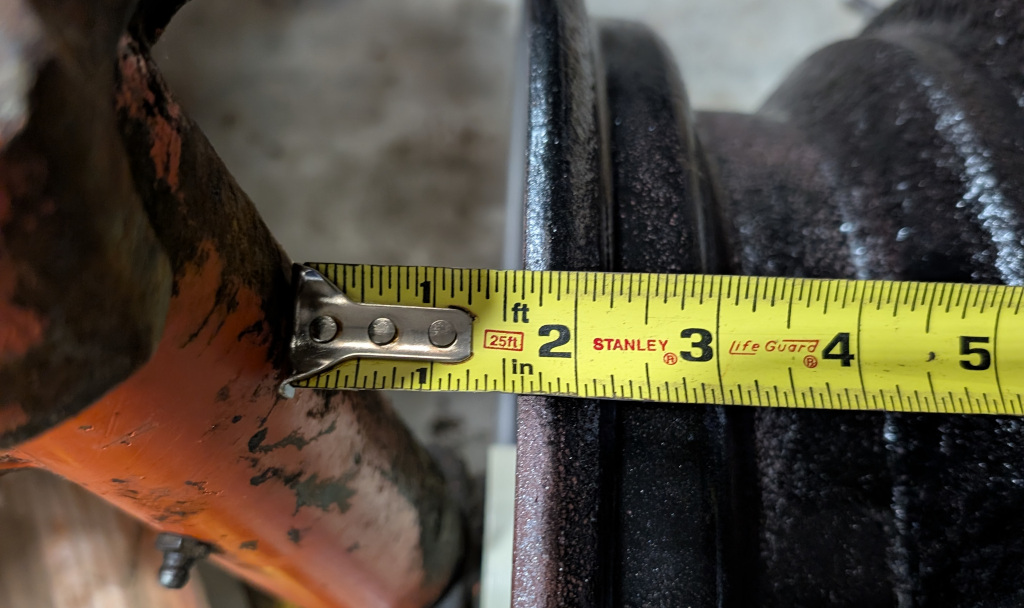

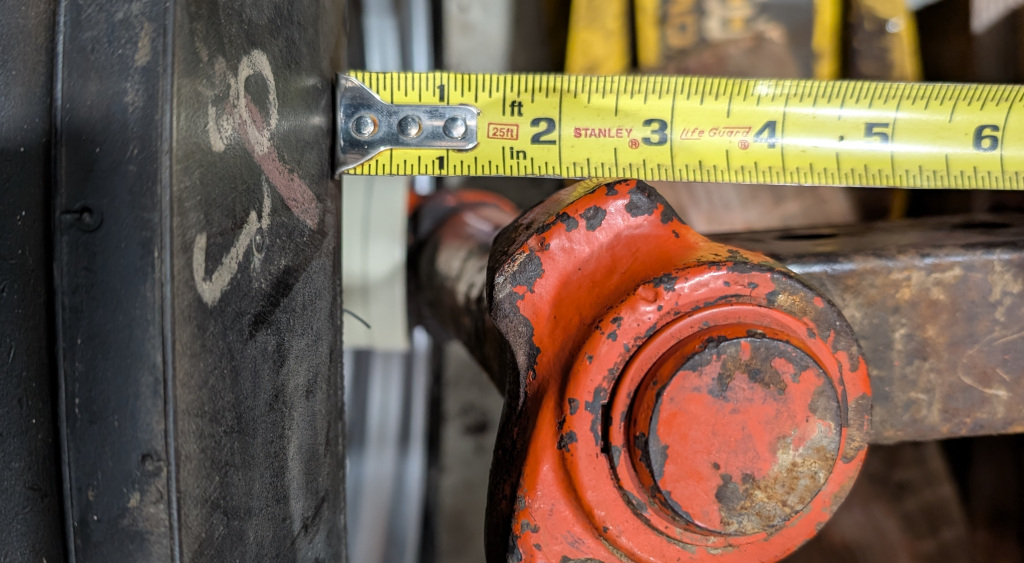

With 4 inch back spacing and a 6.50 x 16 tire there is 1.25" clearance
One of the front wheels is ready the other will need a different wheel

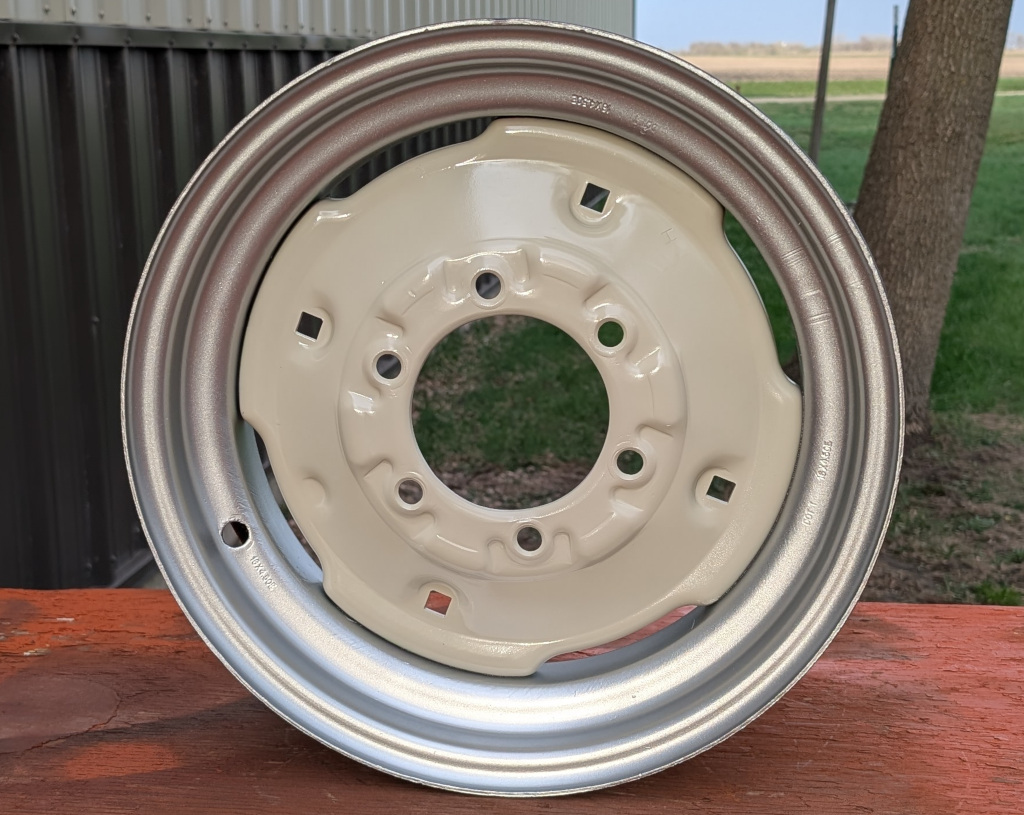

Scott found a proper replacement wheel, it is a Titan date stamped 10 23 04

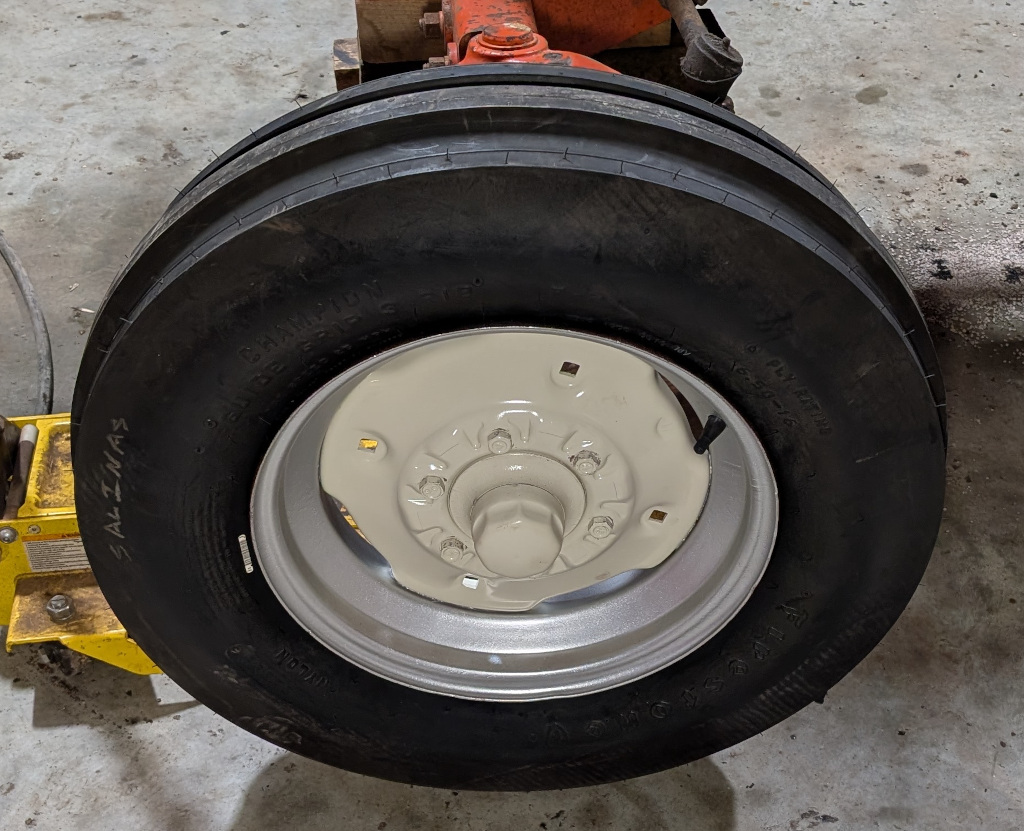

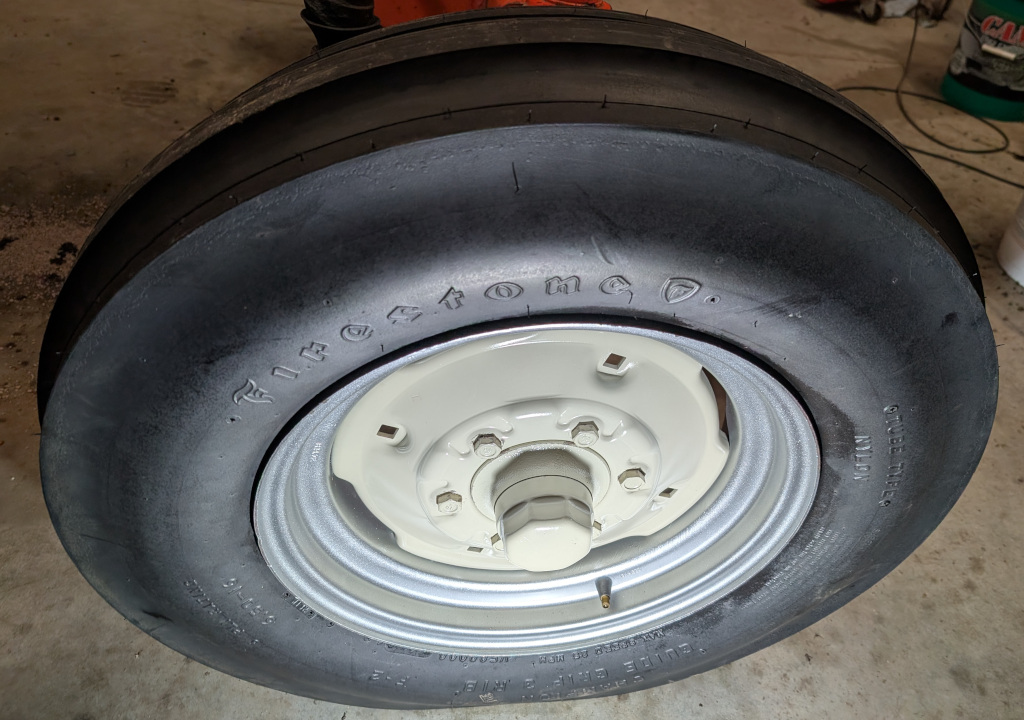

Now the front wheels are done
