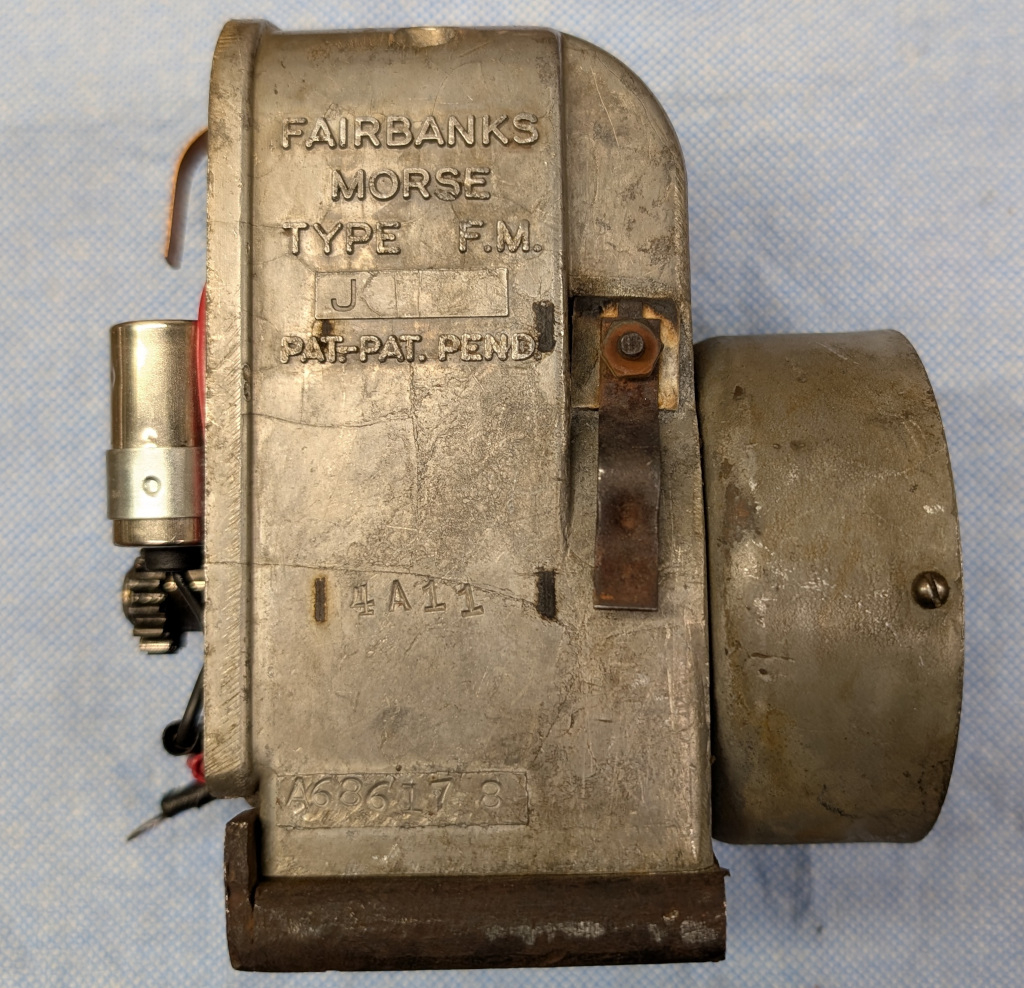

FMJ4A11 Magneto Teardown, Cleaning, and Reassembly
J - Fairbanks Morse Model FMJ
4 - Four Cylinder
A - Base Mount - a B here would designate Flange Mount
11 - Originally shipped to International Harvester
The base mount was used before the flange and timing could not be adjusted while running

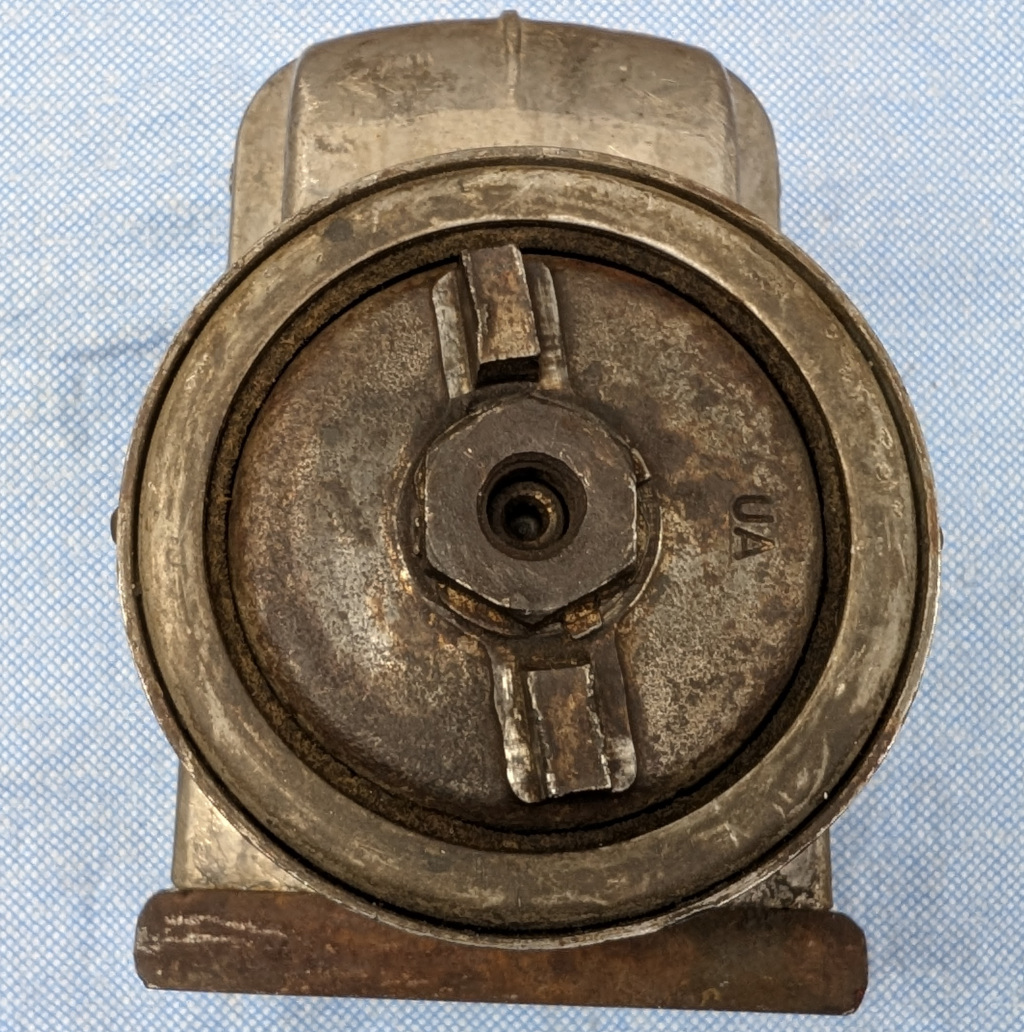

Fairbanks Morse had a seal that needed to be removed to pull the Impulse Coupler

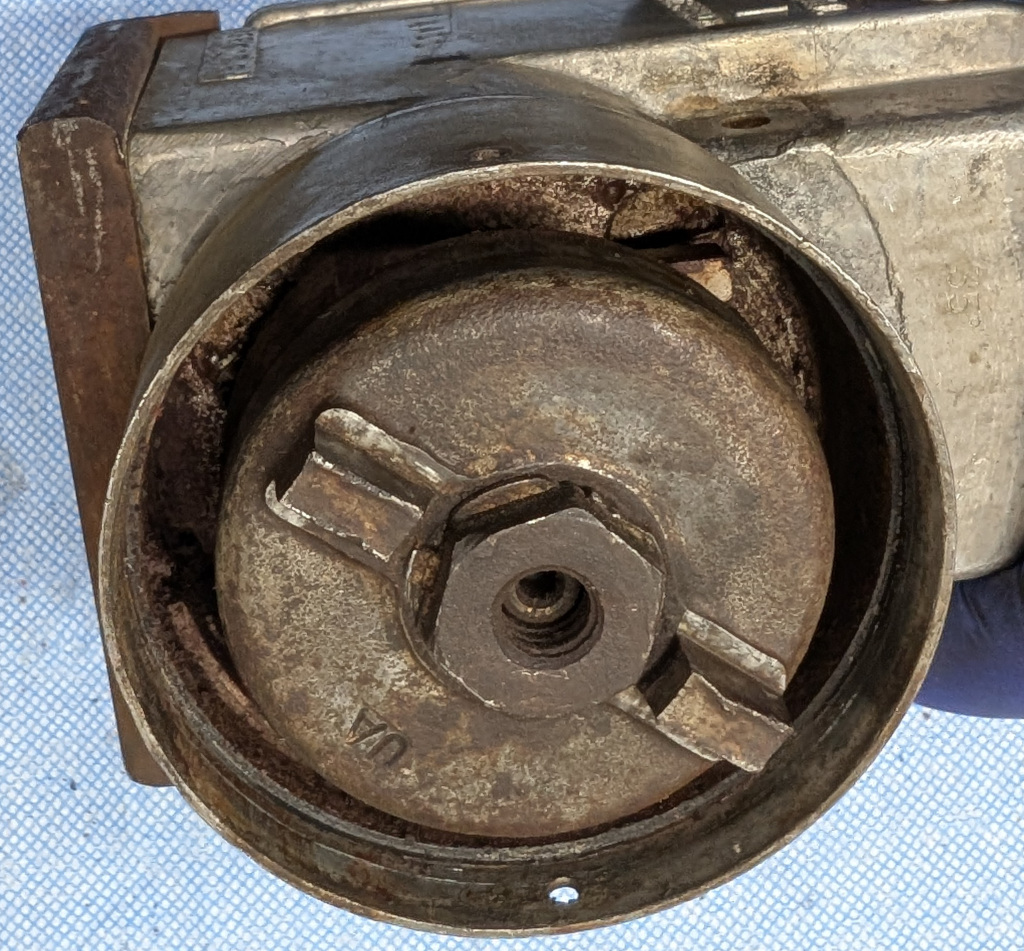

Two small screws hold the seal in place. What we see with the seal removed.

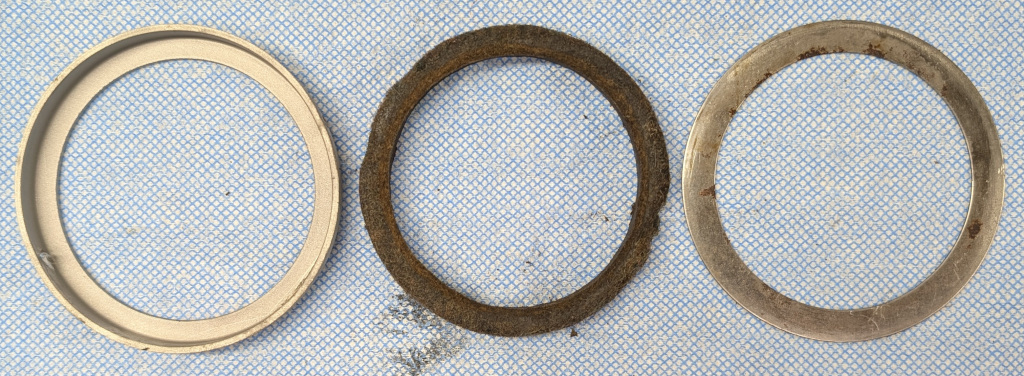

The seal consists of a cup, felt ring, and a washer

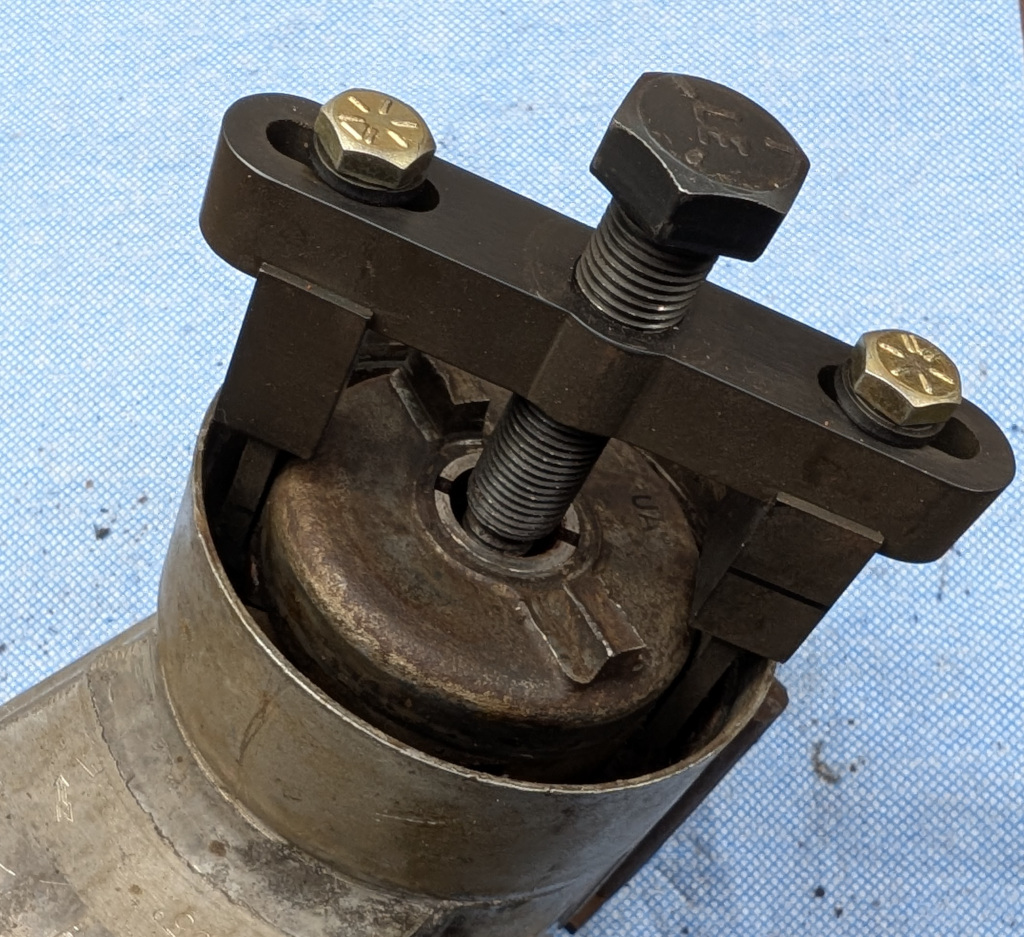

With the nut removed the Agrimson Tool Company Impulse Puller can be used

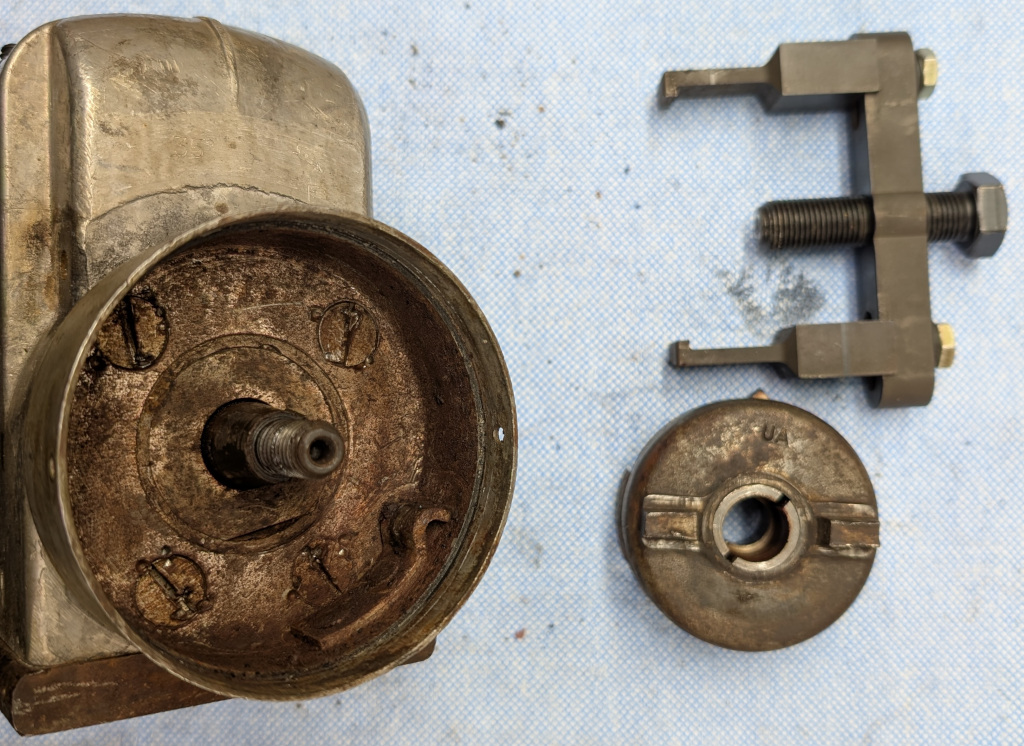

What it looks like without the impulse coupler

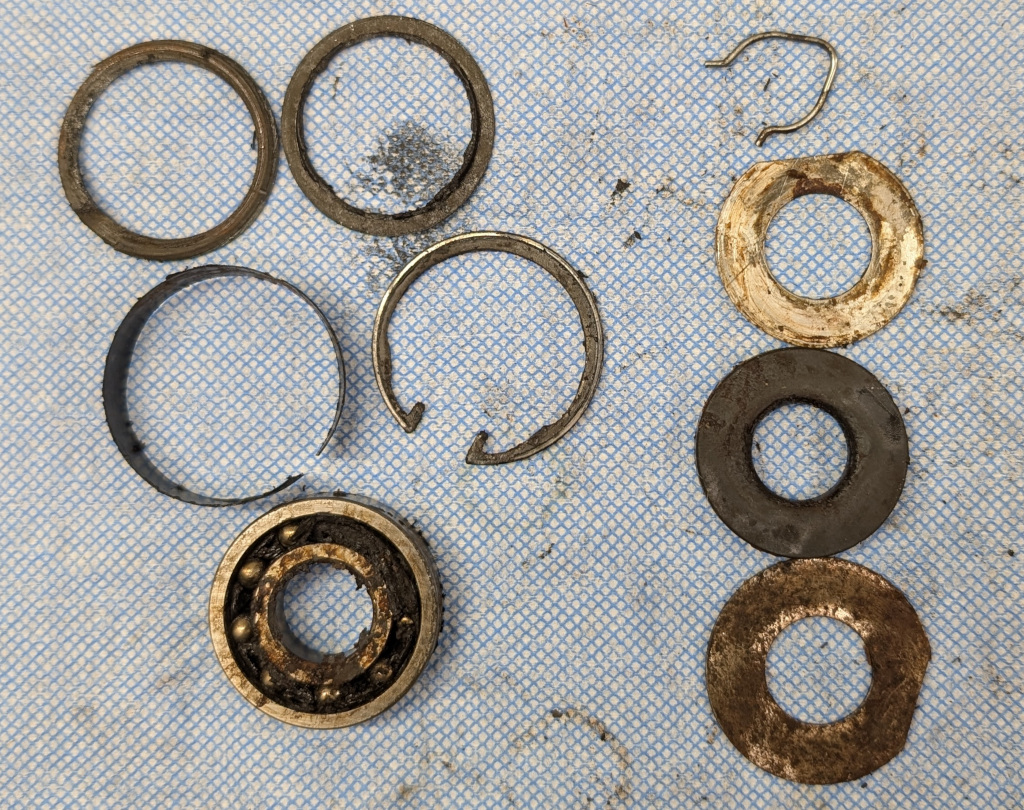

The paper insulators that surround the bearing and the clips and seals that need to ne removed and cleaned

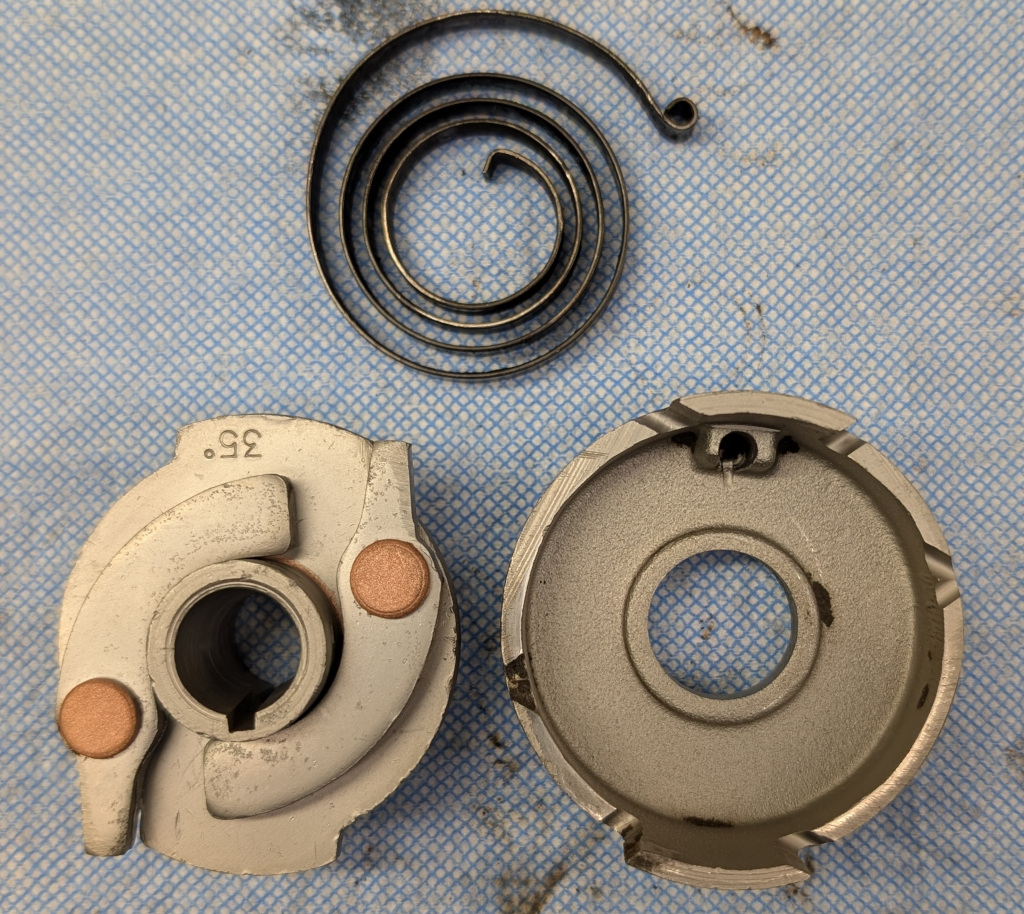

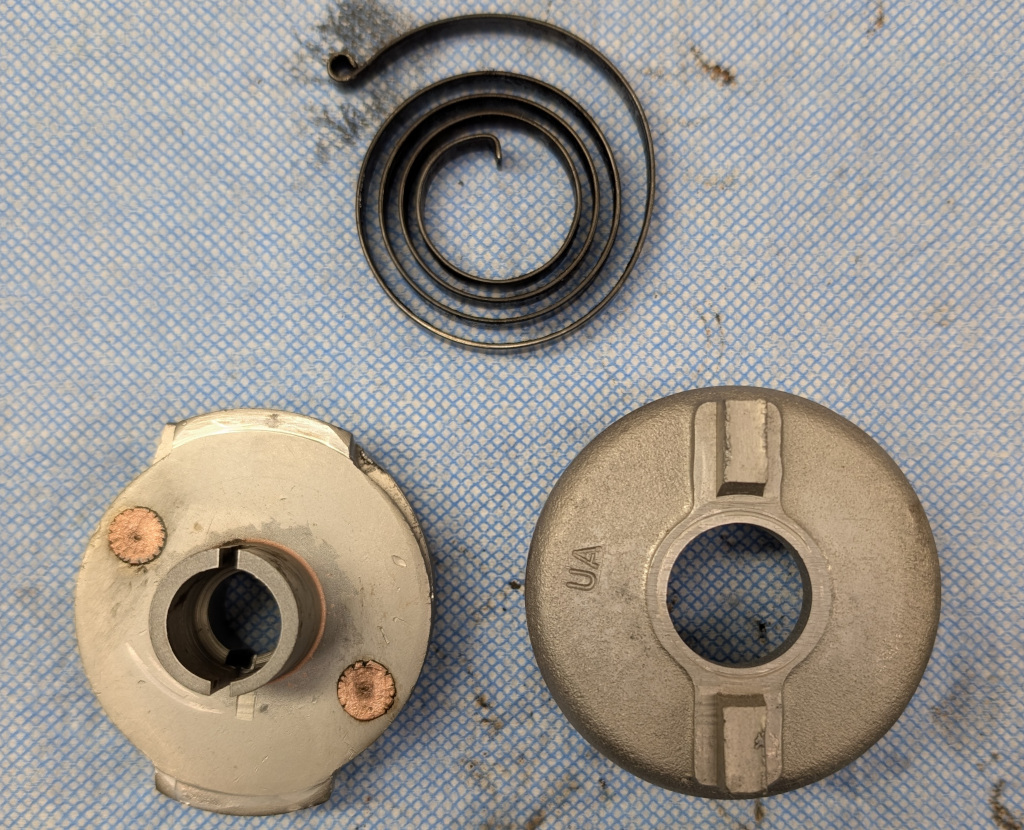

This was from an IH engine requiring 35° lag angle
As seen from the other side

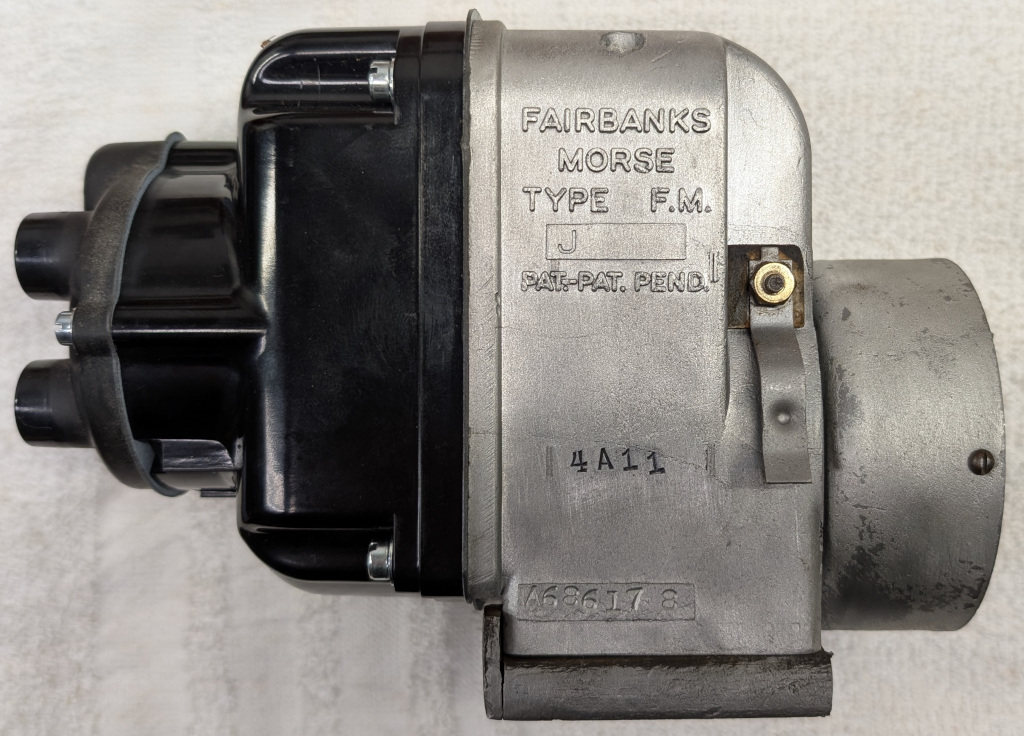

The rest of the cleaning and assembly is the same as the flange mount mag
